Cleaner & Seed Sizer (2 – 4 screens)

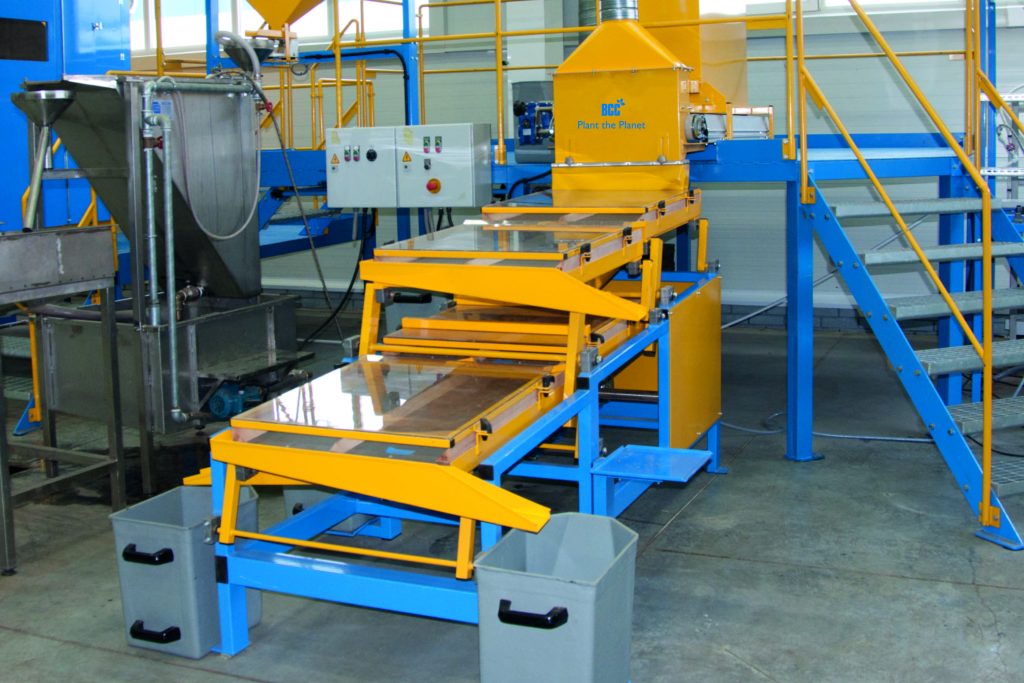

The BCC Cleaner & Seed Sizer (2 – 4 screens) consists of either two or four screens, fitted with a belt feeder (with aspiration function), which allows for pre-cleaning (scalping) of smaller cones, extraction of light impurities, removal of debris both larger and smaller than the seed lot and dividing the seed lot into different sized fractions.

This larger model Cleaner and Seed Sizer is versatile and used in larger seed processing centers for pre-cleaning of smaller cones and cleaning and sizing of a wide range of seed species (from small Eucalyptus to large beech and pine nuts).

Specifications

  • 2-screen version
  • Belt feeder - Dimensions: (L x W x H) 1600x 750x 1000mm
  • Weight: 165kg
  • Power supply: 3 x 400 V, 50 Hz
  • Power requirement: 1.0 kW
  • Seed hopper capacity
  • Belt feeder: approximately 300 liters (seed with wings) or approximately 50 liters (dewinged seed)
  • Maximum production capacity: approximately 20-30 kg/hour
  • Dust filter connection: 2400m3/hour
  • Screens and collection containers:
  • 10 screens (sizes to be specified) and 3 containers included

Downloads

More Information

4-screen version

Belt feeder

  • Dimensions (L x W x H) 1500 x 800 x 1400 mm
  • Weight: 165kg
  • Power supply: 3 x 400 V, 50 Hz
  • Power requirement: 1.0 kW

Seed hopper capacity

  • Belt feeder: approximately 300 liters (seed with wings) or approximately 50 liters (dewinged seed)

Maximum production capacity

  • Approx. 30-50 kg/hour
  • Dust filter connection: 3000m3/hour
